Lab 4: Motors and Open Loop Control

ECE4160 Fast Robotics — Spring 2026
Connor Lynaugh

Objective

The goal of this lab was to convert my car from manual to open loop control. After this lab the car can execute pre-programmed movement sequences using the Artemis Nano and two dual motor driver boards.

Prelab

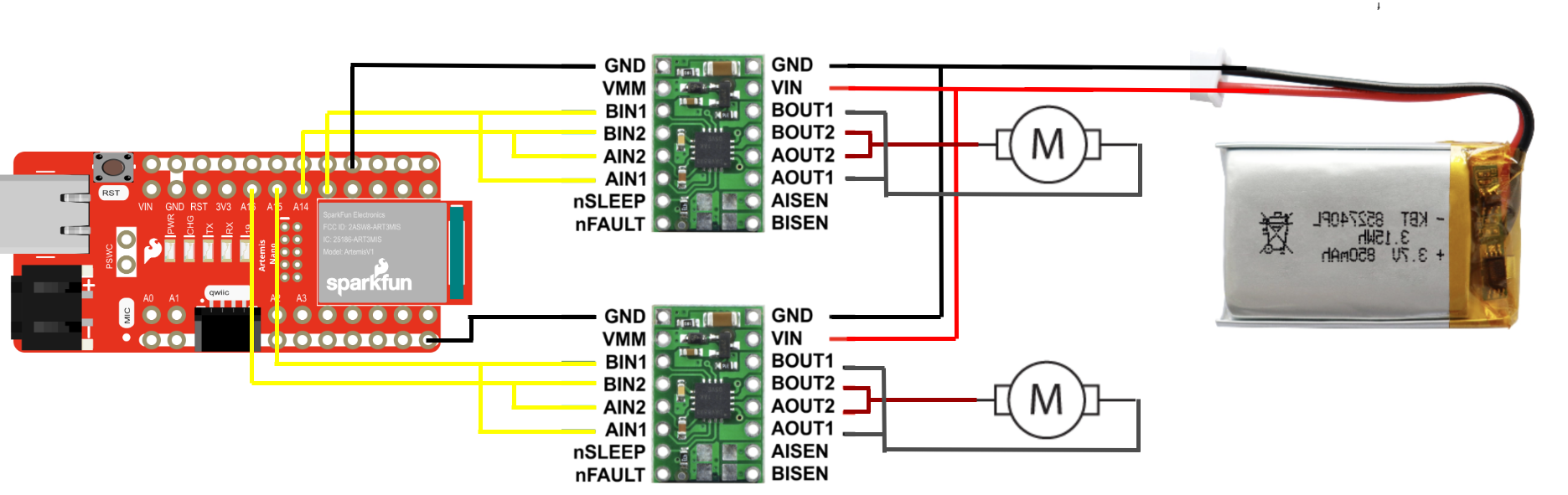

Motor wiring diagram

I wired my motor circuitry as shown above. Four adjacent PWM pins (13–16) on the unused side of the Artemis Nano were selected for motor control. All grounds were tied together to prevent unnecessary ground islands or loops.

The A and B inputs and outputs of each dual motor driver were shorted together to increase available output current. The Artemis Nano and motors were powered using two separate 850mAh batteries. This isolation prevents motor current transients from sagging the logic rail and resetting the microcontroller.

Lab Tasks

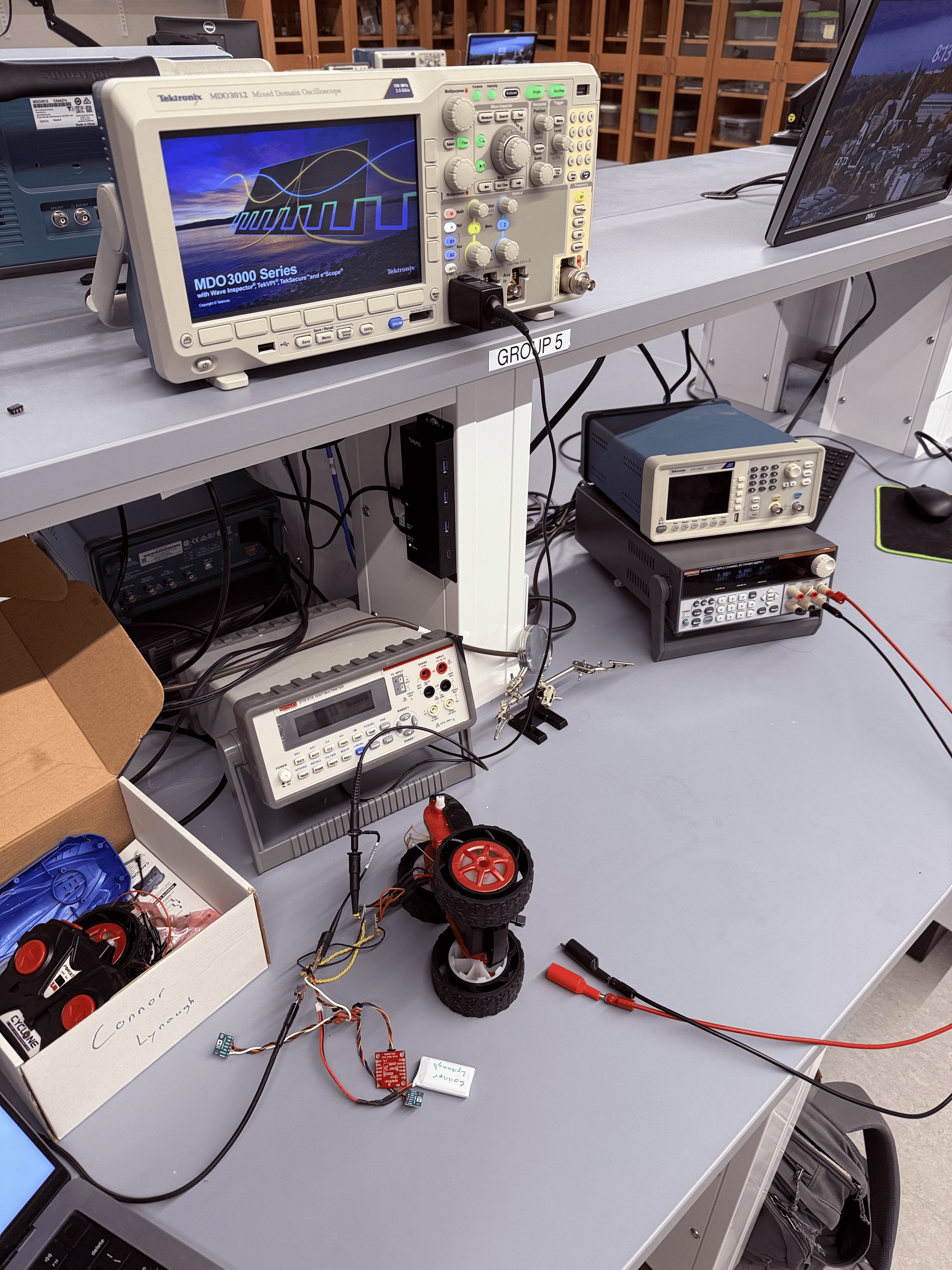

Initial motor driver wiring setup

I first tested a single dual motor driver with both sets of inputs and outputs wired in parallel. The motors were initially powered from a bench supply set to 3.7V with a current limit enabled to prevent shorts.

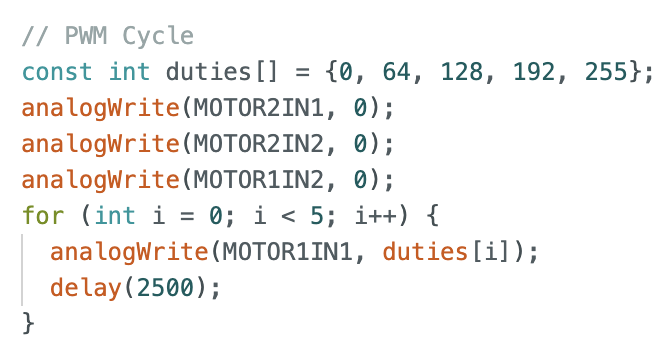

AnalogWrite PWM example code

An oscilloscope was connected to verify the PWM waveform generated using analogWrite(). To drive forward motion, one input was modulated while the complementary input was held low.

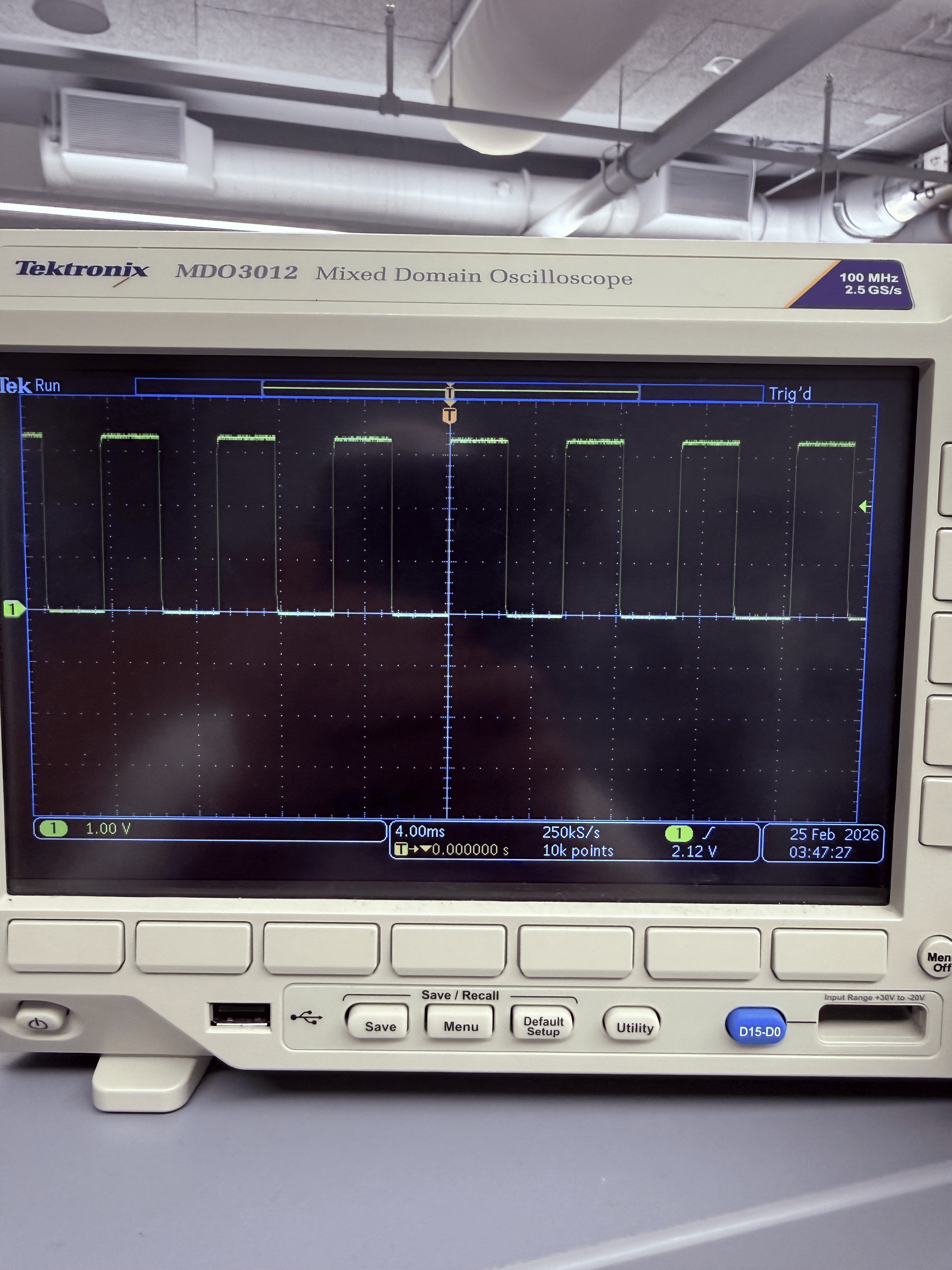

Duty cycle oscilloscope screenshot

After verifying proper operation with one controller, I integrated the second motor driver to support independent left and right motor control. Backward motion was achieved by reversing which input was PWM-driven.

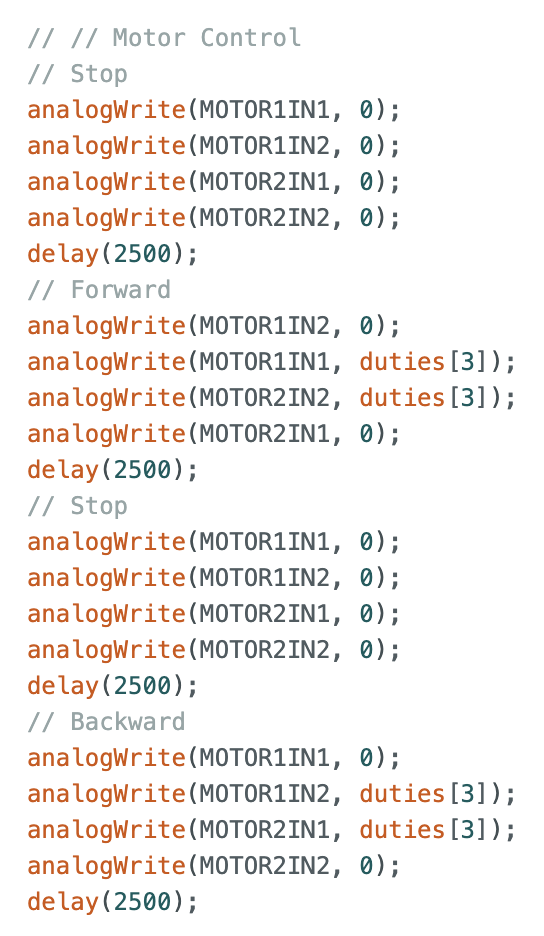

Forward and backward motor code

After switching from bench supply to battery power, the full system operated reliably without resets.

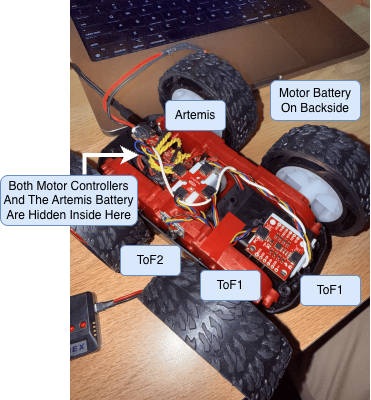

Fully integrated car system

PWM Calibration

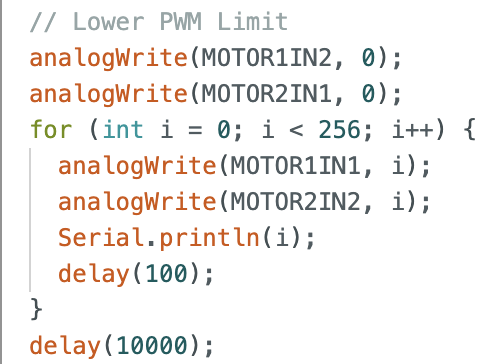

PWM calibration script

Through testing I determined:

  • ~77/255 (~30%) duty cycle initiates forward motion
  • ~119/255 (~47%) duty cycle initiates turning in place

Lower duty cycles are sufficient once wheels are already in motion.

Straight Line Motion

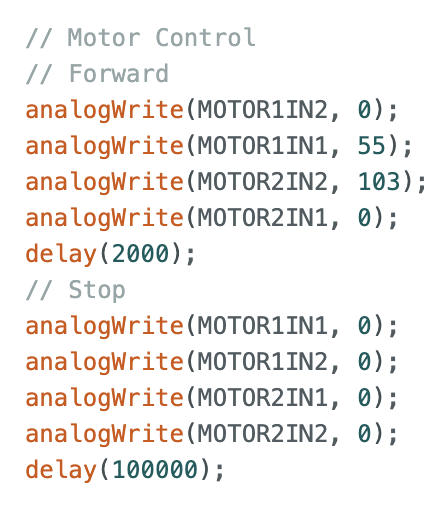

Straight line driving code

Using calibrated PWM values I was able to reliably drive the car forward in a straight line under open loop control.

Open Loop Movement Functions

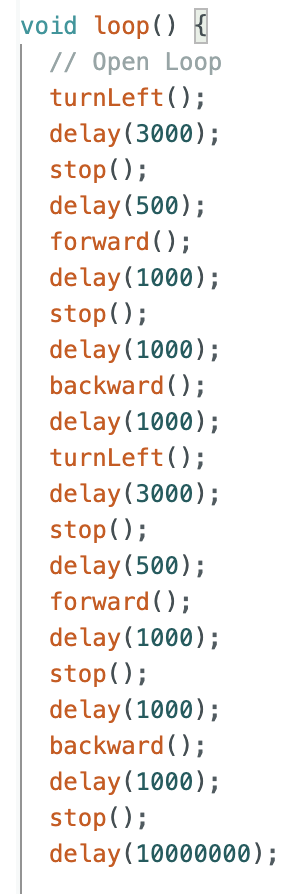

Open loop main routine

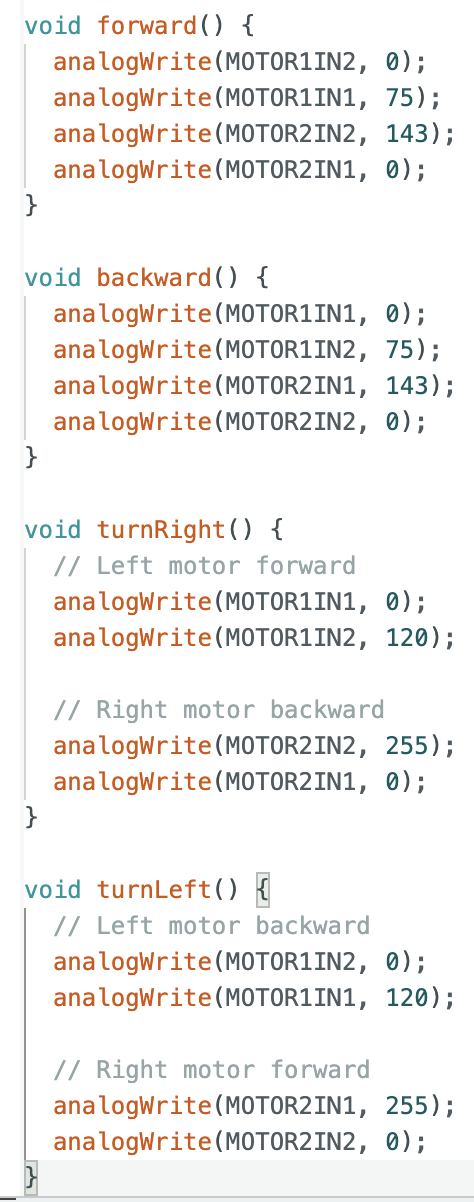

Helper motion functions

The final program executes a fully open loop movement routine consisting of forward motion, turns, and stops without feedback correction.

Acknowledgements

I worked with the TAs to execute this lab smoothly.
